Downhole tools · Data

Drilling Optimisation

Drill bits, the Jet Bit Sub and DeepView drilling data: downhole tools and data that help operators drill faster, with fewer trips.

01Drill bitsDownhole tool

01.1

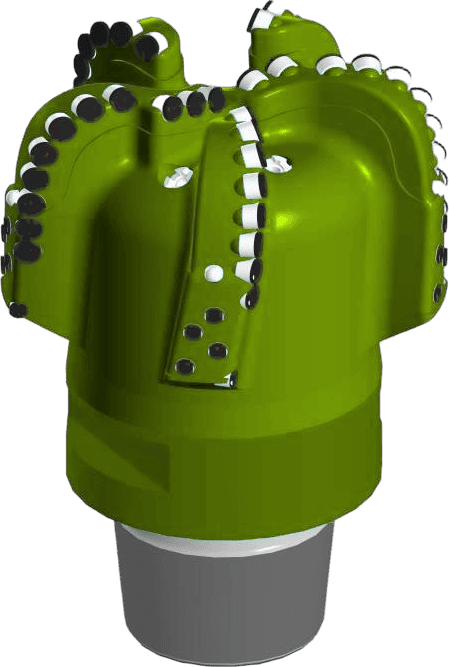

M-Blade PDC bit

Supplied by MO ENERGY

A 295.3 mm (11-5/8 in) five-blade steel-body PDC bit, IADC S323, with seven replaceable nozzles.

Premium cutters and technologies to enhance performance and ROP.

Outer diameter: 295.3 mm
IADC code: S323
Number of blades: 5
Replaceable nozzles: 7 (type HP22)
Nozzle diameter range: 7.1 to 12.7 mm
Cutter diameters: 8 / 10 / 13 / 16 / 19 / 22 mm
Thread connection (GOST 28487-2018): Nipple 3-152
Length in BHA: 350 mm
Maximum axle load: 294 (30 t) kN
Bit rotation frequency: 60 to 260 rpm
Maximum flow rate: 32 to 70 l/s

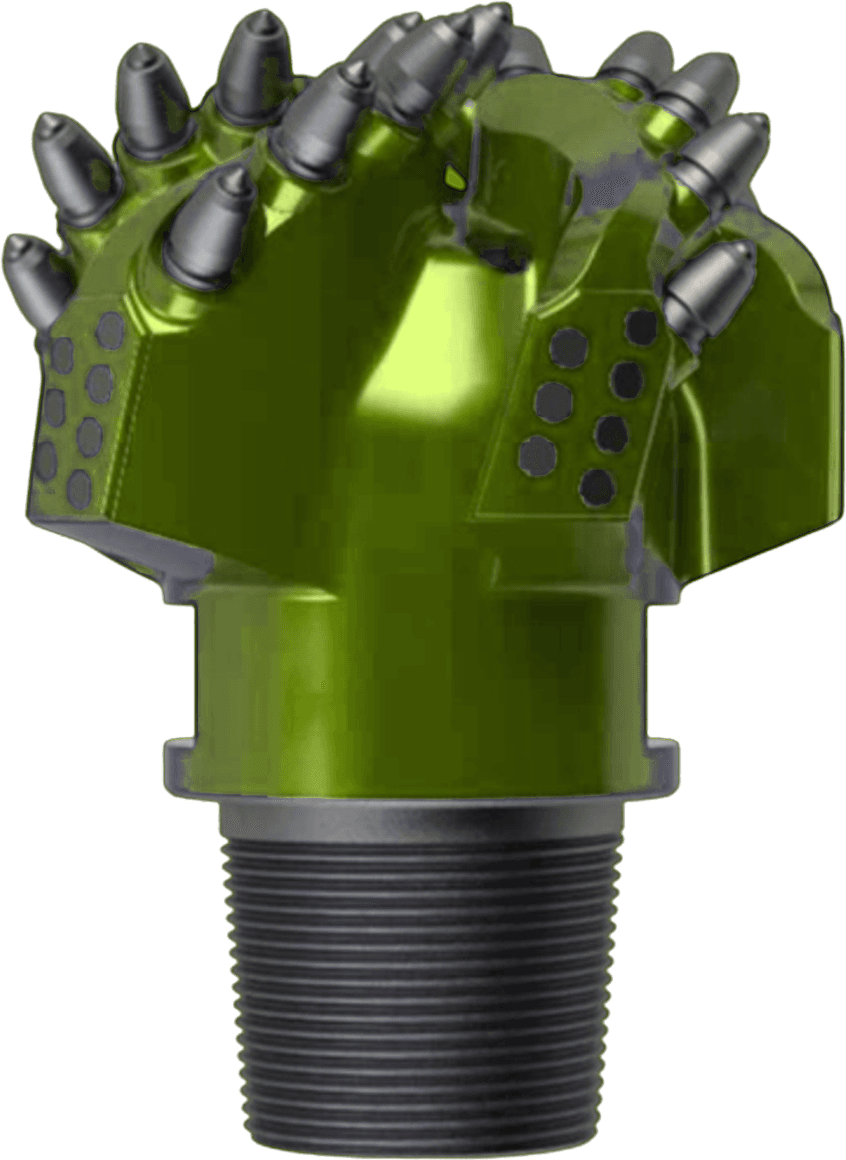

Steel-body drill bit in MO ENERGY green, side view

01.2

SG527G steel-body bit, 12-1/4 in

Supplied by MO ENERGY

A 311.2 mm (12-1/4 in) steel-body bit, IADC S113, with five blades, 27 mm self-rotating conical inserts and seven nozzles. Built for soft to moderate gravel, overburden and coarse sand beds at high ROP.

Gauge inserts protect the gauge pads and keep the wellbore in gauge.
Self-rotating conical inserts suited to gravel.

Size: 311.2 mm (12-1/4 in)
IADC code: S113
Body: Steel
Blades: 5
Nozzles: 7 (Series 60)
Face inserts: 22 x 27 mm (1.063 in)
Gauge inserts: 35 x 13 mm (0.512 in)
Overall length: 41.3 cm (16.27 in)
API connection: 6-5/8 in REG pin
Fishing neck diameter: 190.5 mm (7.500 in)
Weight: 67.8 kg (149.6 lb)
Weight on bit: 4,000 to 35,000 lb
Make-up torque: 28,000 to 32,000 ft-lb
Minimum flow rate: 1,438 L/min (380 gpm)
Rotation: All rotary and motor applications

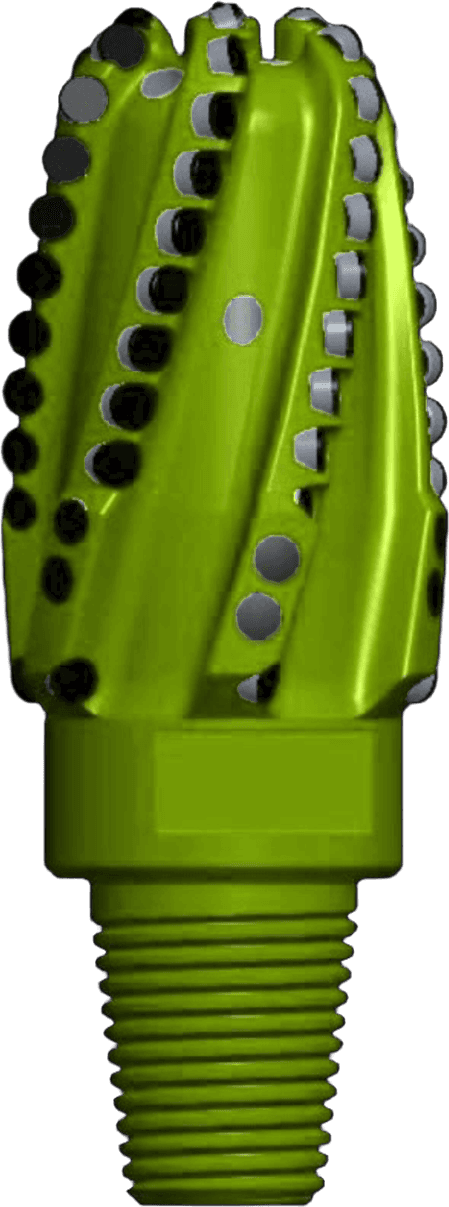

SB613GB 123 mm steel-body bit in MO ENERGY green, side view

01.3

SB613GB steel-body bit, 123 mm

Supplied by MO ENERGY

A 123 mm (4.842 in) steel-body bit, IADC S434, with six blades, 13 mm cutters and seven fixed ports. Built to drill out composite frac and bridge plugs, stage tools, debris subs, cement and retainers.

Double gauge inserts and back-reaming cutters.
An up-hole directed port speeds up cuttings removal.

Size: 123 mm (4.842 in)
IADC code: S434
Body: Steel
Blades: 6
Fixed ports: 6 x 16/32 in (12.7 mm) and 1 x 14/32 in (11.1 mm)
Cutters: 62 x 13 mm (56 face, 6 back-ream)
Gauge inserts: 12 x 13 mm (0.512 in)
Overall length: 32.8 cm (12.93 in)
API connection: 2-7/8 in REG pin
Fishing neck diameter: 98.4 mm (3.875 in)
Weight: 13.1 kg (29.0 lb)
Weight on bit: 1,500 to 13,500 lbf
Make-up torque: 2,500 to 3,500 ft-lb
Minimum flow rate: 263 L/min (70 gpm)
Rotation: All rotary and motor applications

02Jet Bit SubDownhole tool

02.1

Jet Bit Sub

A drilling-performance sub with no moving parts, run between the motor and the bit. It turns steady flow into a pulsating, turbulent jet at the bit face to keep the bit clean and cool and to lift cuttings.

50+wells drilled and counting

Explore the Jet Bit Sub

03DeepView drilling dataData

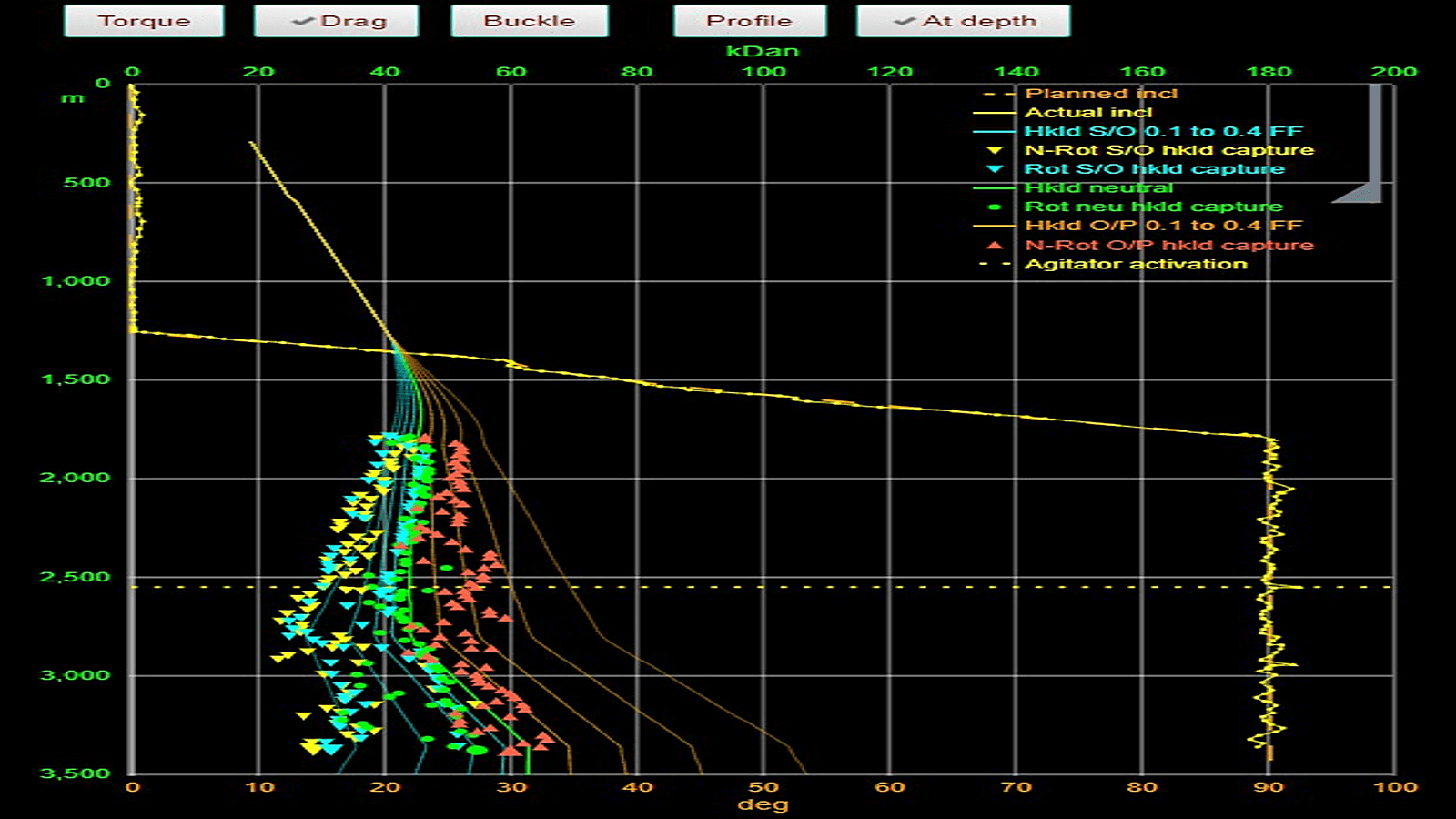

DeepView real-time torque and drag chart: hookload and inclination against depth

03.1

DeepView drilling optimisation

Partner product · OPTIMAX Drilling Solutions

A drilling-optimisation software and advisory service. DeepView runs at the rig site on one-second rig data and has a cloud viewer for the office.

Modules for motor performance (MotorMax), stall detection (StallGuard), geology (GeoMax), run metrics (RunMetrix) and trip metrics (TourMetrix).
